Ventilator Tester and Gas Flow Meter
Datrend - venTest
Ventilator Tester and Gas Flow Meter
Key Features
- 7” capacitive widescreen display with LED backlight
- Intuitive graphical operating interface for measuring devices
- FlowSense bidirectional airflow sensors (±300 l/min or ±12 l/min)
- Automatic flow sensor detection
- 2 measured curves displayed simultaneously
- 11 numeric parameters displayed, freely configurable
COMPACT, PORTABLE AND EASY TO USE
Its compact design makes it suitable for testing Ventilators and Anaesthetic systems of virtually any type
Equipped with an internal rechargeable battery, enabling mobile operation without a mains connection
On-board Graphical Display enables the generation of Pressure and Flow waveforms without the need of a laptop
Optional multi-gas analyzer
User-defined test procedures and associated report forms can be stored and retrieved from the removable SD card or USB external memory.
ACCURACY AND PORTABILITY

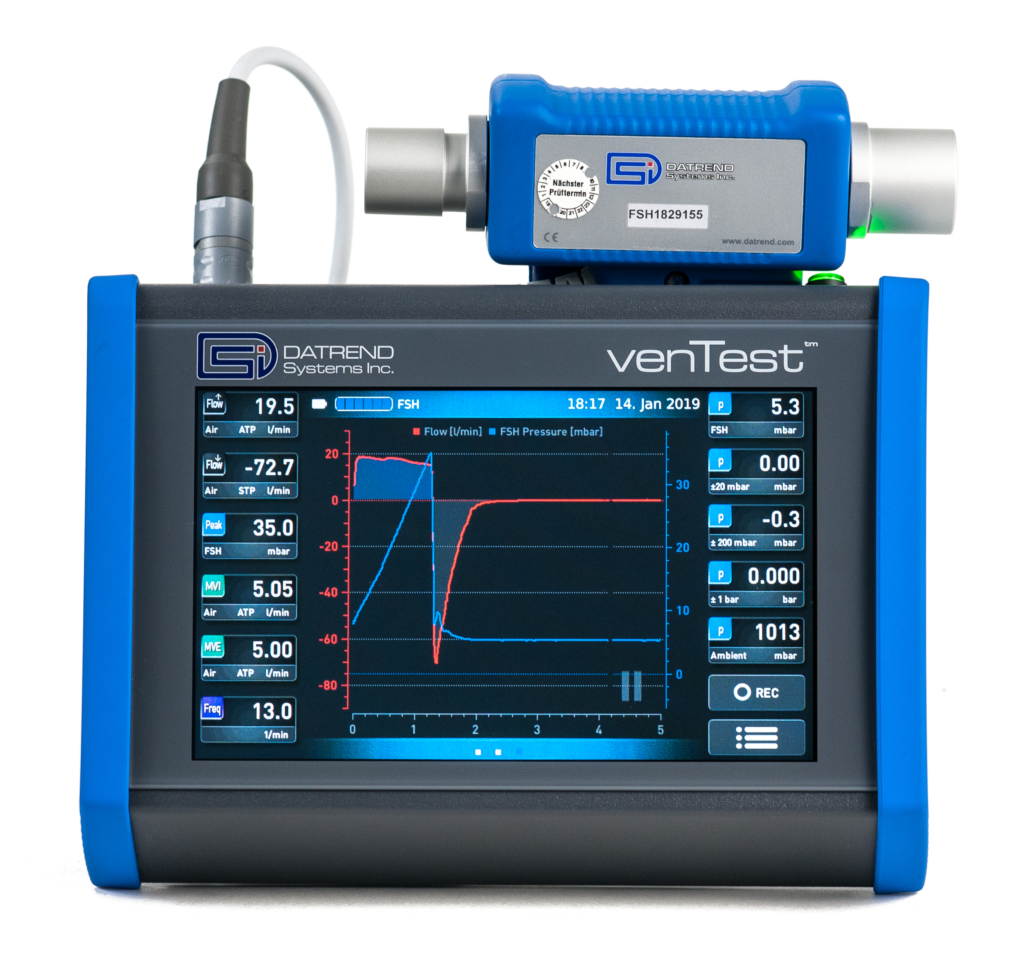

venTest is designed to accurately test the performance of Ventilators and Anaesthetic systems. Data analysis and waveforms are generated on-board and displayed on its 7″ touch screen display – no need to carry around a laptop.
With a small footprint and internal rechargeable battery, venTest is a very portable Ventilator Test System
Share with your friends:
TSI - 4080 Certifier FA Plus
Ventilator Tester and Gas Flow Meter
Key Features
- Color touch screen graphical user interface
- Real-time graphing mode
- Bi-directional flow measurement
- Data storage using SD Flash card and internal memory
- Access stored data through USB interface
- Report printing capability
- Rechargeable battery plus AC operation
- Meets RoHS Directive 2011/65/EU

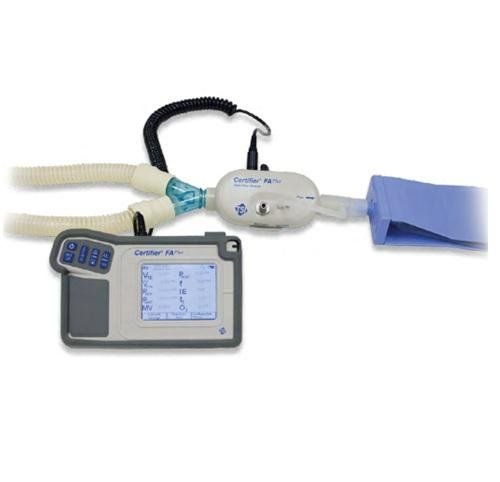

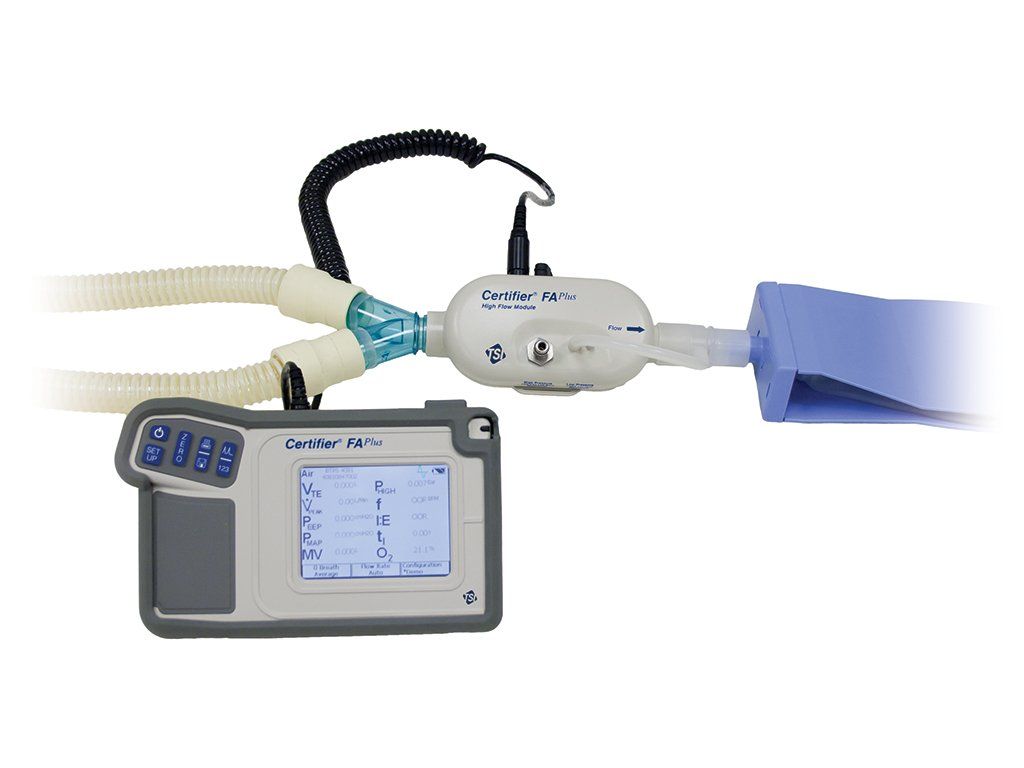

The 4080 Certifier® FA+ System is made up of a
4081 Certifier® FA+ High-Flow Module Kit and an
4088 Certifier® FA+ Interface Display Module Kit.
4080 TEST PARAMETERS:
- Flow
- Peak & Minimum Flow
- Volume, Inhaled and Exhaled
- Minute Volume
- Low Pressure (Differential)
- Peak & PEEP Pressure
- Mean Airway Pressure
- High Pressure
- Barometric Pressure
- Inspiratory Time
- Expiratory Time
- I:E Ratio
- Respiratory Rate
- Gas Temperature
- Oxygen Concentration (with optional 4073 Kit)
