Defibrillator Analyzers

Datrend - Phase 3

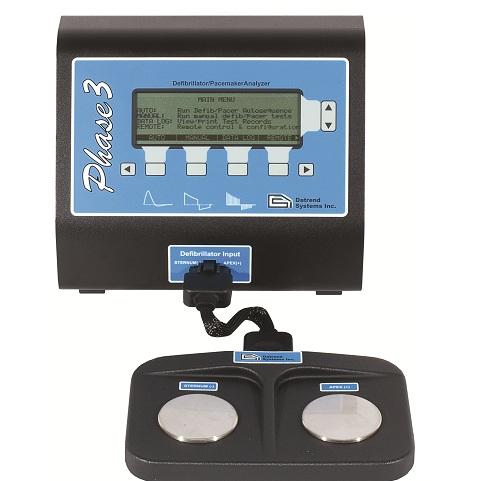

Defibrillator / Pacer / ECG / AED Analyzer

Key Features

• Test all available defibrillators, including monophasic, biphasic, and pulse biphasic waveforms
• Test AED’s and pacers
• 32 Autosequences – Save time, save money, save manpower
• Lightweight – battery operated

VERSATILITY

Phase 3 tests Monophasic , Biphasic and Pulsed Multiphasic Defibrillators , AEDs and Transcutaneous Pacers with better than 1% accuracy on either line or battery power.

PORTABILITY

Detachable Paddle Plate provides easy hands-free testing. Battery provides up to 24 hours of continuous operation.

USB CONNECTIVITY

USB Communication capability allows real-time waveform capture and efficient data transfer to your PC.

REAL-TIME WAVE CAPTURE

Capture high-resolution signal data to a PC running Phase3pc software immediately after discharge.

TEST RECORD STORAGE

Phase 3 provides storage for up to 50 Test Records and up to 10 defibrillator discharge waveforms as Wave Records.

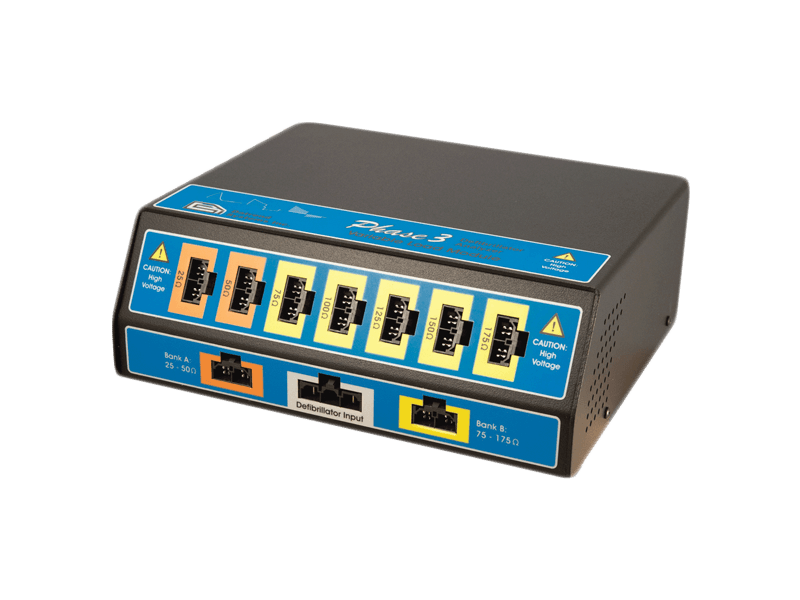

VARIABLE LOAD MODULE

Our optional, exclusive VLM allows testing defibrillators at maximum energy with selectable loads from 25 to 175 ohms, in accordance with AAMI DF-80 and IEC 60601-2-4. High-resolution wave graphics and test data are obtained with Phase 3VL software, a standard accessory to the VLM.

PHASE 3PC COMPANION SOFTWARE

Included as a standard accessory, Phase 3pc allows you to create and edit auto-sequences, download and store test data and wave graphics to your PC.
